Z-5 lattice
Z metal slats are used to manufacture lattice, vents, fences, cladding, pergolas, clothes lines, light patios and other multiple ventilated enclosures. The strength of the steel slats allows the installation of strong and secure enclosures and lattices, while maintaining a high ventilation coefficient.

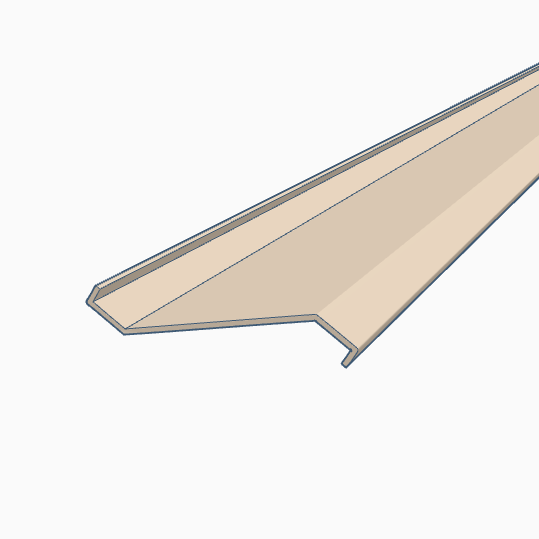

The Z-5 slats have three plain Z-shaped planes, as well as a flange at each end that increases their resistance.
Z-5 metal slats are manufactured in four sizes, in 1.5 and 2 mm thick galvanised and pickled steel.
| AxBxC - e (mm) | H (mm) | Peso (Kg/m) | Acabado |
|---|---|---|---|
| 3x11x45x11x3 - 1,5 | 64 | 0,895 | Acero Galvanizado y Decapado |
| 11x24x63x24x11 - 2 | 106 | 2,000 | Acero Galvanizado y Decapado |
| 11x24x77x24x11 - 2 | 120 | 2,245 | Acero Galvanizado y Decapado |
| 11x24x98x24x11 - 2 | 140 | 2,575 | Acero Galvanizado y Decapado |
Do you need more technical specifications?
Download the technical data sheet to find out the composition, properties and applications of the different models. Contact the Cierres del Hogar team of experts if you have any specific technical and/or commercial questions..
WORK COMPLETED
Special Courts
San Salvador de Bahía
The thickness of the facade has been covered with an Aluacero panel. The multi-perforated model allows light to enter the rooms. These micro-perforations enable correct ventilation of the facade and the panels, preventing overheating.
The lacquering on the panels makes the building stand out and gives it a much more modern appearance.
It is quick to install and does not require highly skilled labour.
