Aluacero panels, structural panels for architecture
The Aluacero Panel is the first ventilated panel that offers complete solutions in all types of coatings.
Thanks to its excellent mechanical resistance to loads and impacts, Aluacero Panels can be adapted to any project, from ventilation grills to the cladding on large facades.
They can be adapted to different projects
The panels can be adapted to all types of projects, from cladding on a church to an industrial complex.
Los ALUACERO P59x35 PANELS are available in 11 and 5 strip formats. There are four models with different ventilation openings: windows, micro-perforated, multi-perforated and blind. They can be adapted to all kinds of projects.

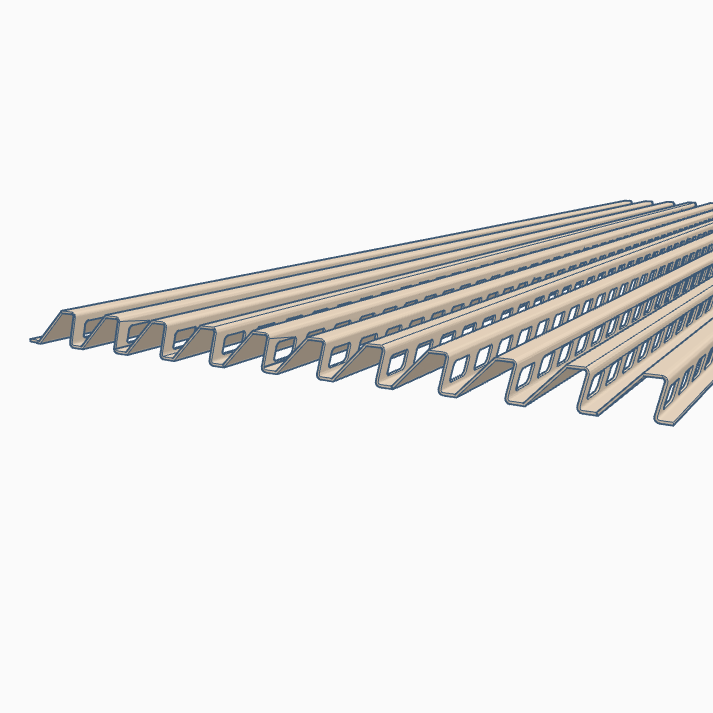

ALUACERO WINDOWS PANEL
ALUACERO MICROPERFORATED PANEL
ALUACERO MULTIPERFORATED PANEL
ALUACERO EOLO PANEL
ALUACERO BLIND PANEL
ENERGY SAVING
With Aluacero Panels there are no limits
Aluacero Panelsprovidesecurity, versatility, ease of assembly, waterproofing, soundproofing, etc.
VERSATILITY
SECURITY
ECONOMY
PRIVACIDAD
Their comparative adventages over individual slats make them practically obsolete. With a alabour saving of over 80 percent, lAluacero Panels are also a benchmark in terms of aesthetics and security.
Aluacero Panels stand out for their excellent performance offering reliability, lightness and easy installation. Their unique design ensures optimal fastening on extremely tall buildings with strong wind loads.
Would you like to use the Aluacero Panel for your project?
Aluacero panels offer architects, designers and engineers alternative solutions in technical and architectural steel or aluminium.
Highly attractive in any type of project
From an aesthetic point of view, Aluacero panels avoid unevenness: The lines are always straight and regular.
Drastically reduce installation costs
They save significant time compared in assembly with individual slats. There is no need to level, weld or screw the slats one by one.
Security and privacy
Ventilated panels that offer total security against vandalism, cannot be pried and have category 1 impact resistance. The openings are arranged in such a way that provides a view of the outside without being seen from outside.
Technical Information for Aluacero Panel
Material: STEEL
| Slats | Model | Thickness (mm) | Weight (Kg/m) | Weight (Kg/m2) | Punched surface | Finishings |
|---|---|---|---|---|---|---|
| 11 | Windows | 0,6 | 4,85 | 7,46 | 22% | Galvanized Cold rolled |
| 11 | Windows | 0,8 | 6,47 | 9,95 | 22% | Corten |
| 11 | Microperf. | 0,6 | 5,42 | 8,34 | 11% | Galvanized Cold rolled |
| 11 | Microperf. | 0,8 | 7,06 | 10,86 | 11% | Corten |
| 11 | Multiperf. | 0,6 | 4,00 | 6,15 | 32% | Galvanized |
| 11 | Multiperf. | 0,8 | 5,50 | 8,46 | 32% | Corten |
| 11 | Blind | 0,6 | 5,89 | 9,06 | NO | Galvanized Cold rolled |
| 11 | Blind | 0,8 | 7,85 | 12,07 | NO | Corten |
| 11 | Eolo | 0,6 | 2,50 | 3,85 | 58% | Galvanized |
| 5 | Windowss | 0,6 | 2,24 | 7,54 | 22% | Galvanized Cold rolled |
| 5 | Microperf. | 0,6 | 2,51 | 8,45 | 11% | Galvanized Cold rolled |
| 5 | Multiperf. | 0,6 | 1,86 | 6,26 | 32% | Galvanized |
| 5 | Blind | 0,6 | 2,73 | 9,19 | NO | Galvanized Cold rolled |
Material: ALUMINIUM
| Slats | MODEL | Thickness (mm) | Weight (Kg/m) | Weight (Kg/m2) | Punched Surface | Finishings |
|---|---|---|---|---|---|---|
| 11 | Windows | 0,8 | 2,42 | 3,72 | 22% | Raw |
| 11 | Microperf. | 0,8 | 2,55 | 3,92 | 11% | Raw |
| 11 | Multiperf. | 0,8 | 1,85 | 2,85 | 32% | Raw |
| 11 | Blind | 0,8 | 2,73 | 4,20 | NO | Raw |
| 5 | Windows | 0,8 | 1,11 | 3,74 | 22% | Raw |
| 5 | Microperf. | 0,8 | 1,17 | 3,94 | 11% | Raw |
| 5 | Multiperf. | 0,8 | 0,84 | 2,83 | 32% | Raw |
| 5 | Blind | 0,8 | 1,26 | 4,24 | NO | Raw |
Auxiliary profiles for Aluacero Panel
“H” PROFIL
P60 FRAME
ALUMINIUM FRAME
“U” PROFIL
OMEGA PROFIL
