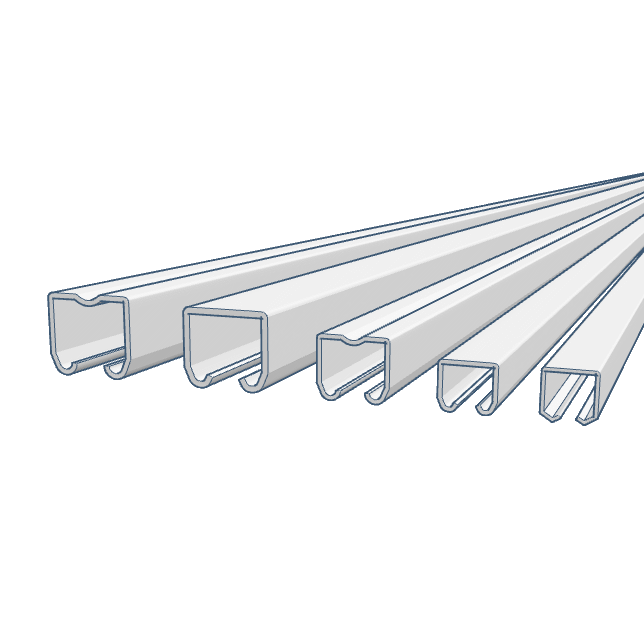

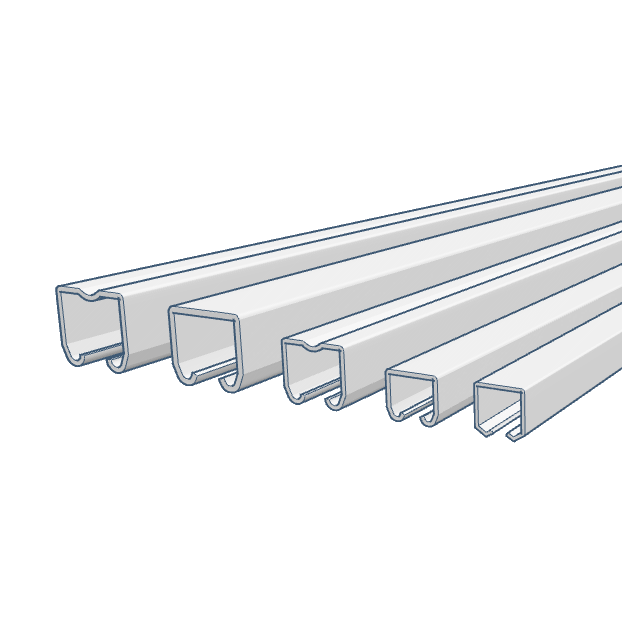

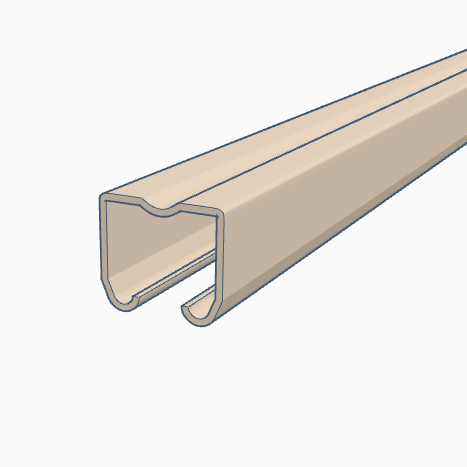

Upper sliding guides
The upper or ceiling sliding guides or rails suspend the sliding doors and slide them during their opening or closing by means of single or double rollers.
There are several sizes of sliding guides in galvanised and stainless steel, with box widths of 29, 33, 40, 43, 60 and 63 mm, in thicknesses between 1.5 and 2.5 mm.
| Medidas (mm) | Espesor (mm) | Peso (Kg/m) | Acabado |
|---|---|---|---|
| 60x55 | 2,5 | 3,650 | Acero Galvanizado e Inox AISI-304-BAP |
| 43x51 | 2,5 | 3,042 | Acero Galvanizado |
| 40x40 | 1,5 | 1,531 | Acero Galvanizado e Inox AISI-304-BAP |
| 30x33 | 2 | 1,560 | Acero Galvanizado |
| 30x29 | 2 | 1,492 | Acero Galvanizado |
Do you need more technical specifications?
Download the technical data sheet to find out the composition, properties and applications of the different models. Contact the Cierres del Hogar team of experts if you have any specific technical and/or commercial questions..
