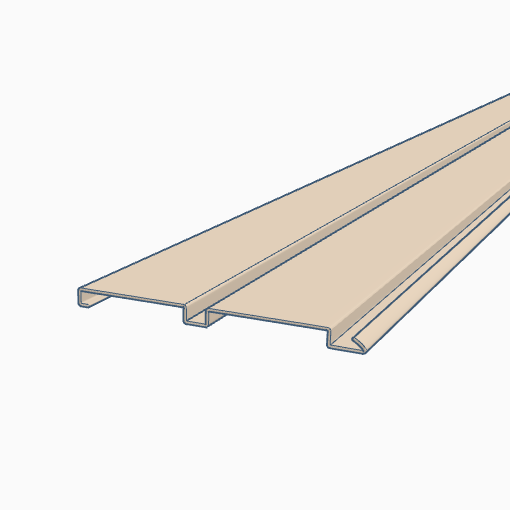

P.B. 200 PANEL
From among the multiple-use corrugated panels that Cierres del Hogar manufactures, the sheet P.B.200 stands out for its reduced coverage. It is very manageable and can be adapted to to different spans by easily overlapping.
| Thickness (mm) | Weight (Kg/m) | Finishings |
|---|---|---|
| 0,6 | Blind steel: 1,260 Microperf. steel: 1,100 | Galvanized, Pre-lacquered steel. Prelacquered: Wood, White-1006, Sand- 2000, Green-3000, Red-7004, Tobacco-2005. Other colors on request. |
| 0,7 | Blind steel: 1,470 | Stainless steel |
| 0,8 | Blind steel: 1,680 Microperf. steel: 1,203 | Cold rolled and prelacquered white-1006 steel |
| 1,0 | Blind aluminium: 0,718 Microperf aluminium: 0,503 | Raw aluminium |
Do you need more technical specifications?
Download the technical data sheet to find out the composition, properties and applications of the different models. Contact the Cierres del Hogar team of experts if you have any specific technical and/or commercial questions..
WORK COMPLETED
Special Courts
San Salvador de Bahía
The thickness of the facade has been covered with an Aluacero panel. The multi-perforated model allows light to enter the rooms. These micro-perforations enable correct ventilation of the facade and the panels, preventing overheating.
The lacquering on the panels makes the building stand out and gives it a much more modern appearance.
It is quick to install and does not require highly skilled labour.
