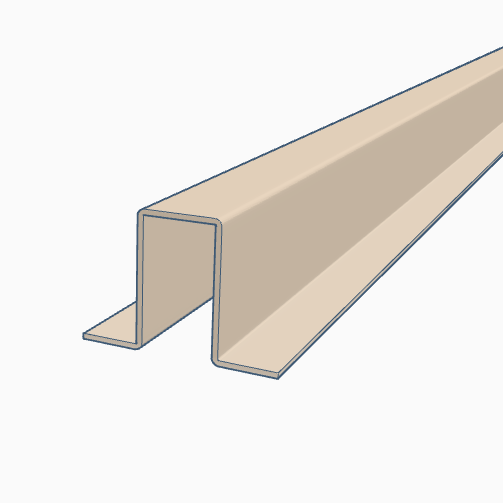

OMEGA PROFILE
The omega profile is used as a batten or self-supporting element for separating the facade and cladding. It is also used as a separator on roofs and ceilings.
Other applications include the manufacture of greenhouses, metal shelves and metal furniture.
Cierres Hogar manufactures 1.5 and 2 mm thick omega profiles in galvanised steel and can adapt to other thickness and finish requirements.
| A (mm) | B (mm) | C (mm) | e (mm) | Finishings |
|---|---|---|---|---|
| 30 | 40 | 20 | 1,5 | Galvanized steel |
| 30 | 40 | 20 | 2 | Galvanized steel |
| 30 | 60 | 20 | 2 | Galvanized steel |
| 25-80 | 25/30/40 | 15 | 1,5-2,5 | Galvanized, pickled and stainless steel |
| 25-70 | 25/30/40/50 | 15 | 1,5-2,5 | Galvanized, pickled and stainless steel |
| 25-60 | 25/30/40/50 | ≤20 | 1,5-2,5 | Galvanized, pickled and stainless steel |
| 25-50 | 20/30/40/50/60 | ≤25 | 1,5-2,5 | Galvanized, pickled and stainless steel |
Do you need more technical specifications?
Download the technical data sheet to find out the composition, properties and applications of the different models. Contact the Cierres del Hogar team of experts if you have any specific technical and/or commercial questions..
WORK COMPLETED
Special Courts
San Salvador de Bahía
The thickness of the facade has been covered with an Aluacero panel. The multi-perforated model allows light to enter the rooms. These micro-perforations enable correct ventilation of the facade and the panels, preventing overheating.
The lacquering on the panels makes the building stand out and gives it a much more modern appearance.
It is quick to install and does not require highly skilled labour.
