Lower Sliding Guides

The guides or floor rails for sliding doors and gates are highly resistant profiles to support the weight of all types of doors or cargo trolleys. The sliding guides allow the lateral opening of the doors with no need to weld rounds on steel plates or to place inverted angles that must be carefully levelled. They are also used to lay rails for moving cargo carts.

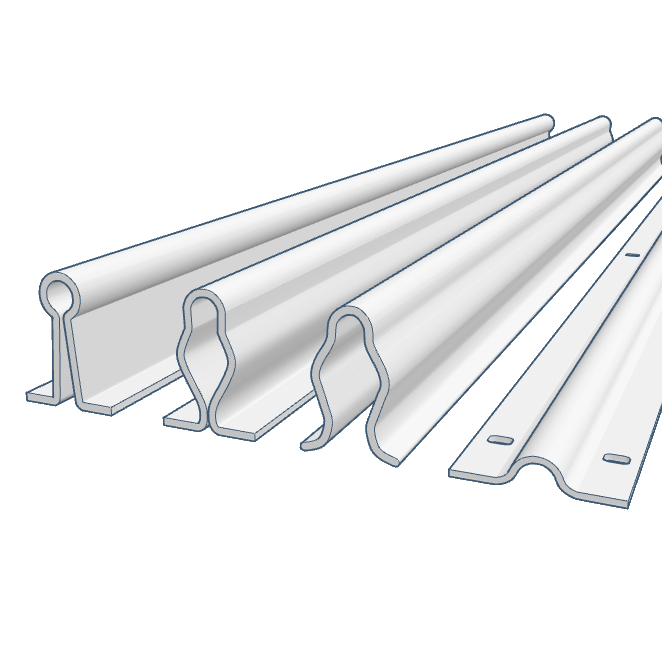

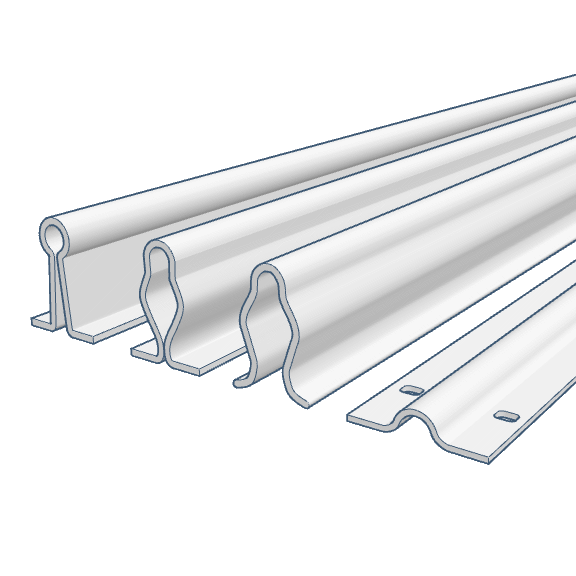

There are four models of 3 mm thick galvanised steel sliding floor guides, three to be embedded on site and one to screw onto an existing pavement. There are also the screw-on sliding guide and cold stamping in stainless steel models.

TipoEspesor (mm)Peso (Kg/m)Acabado
Cerrada33,800Acero Galvanizado
Abierta33,300Acero Galvanizado

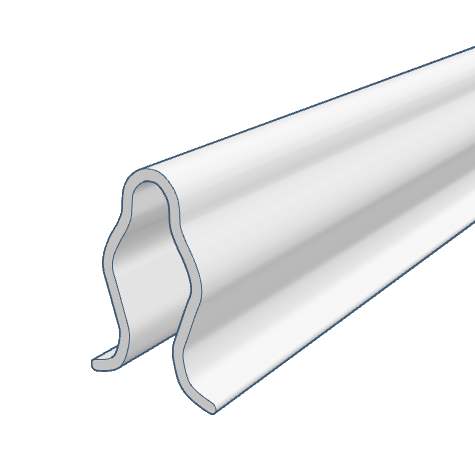

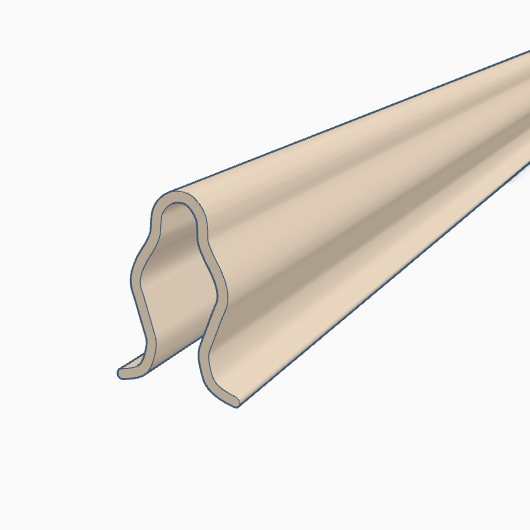

De embutir34,004Acero Galvanizado e Inox AISI-304-BAP
De atornillar31,649Acero Galvanizado
De atornillar2,51,365Acero Inox AISI-304-BAP

Do you need more technical specifications?

Download the technical data sheet to find out the composition, properties and applications of the different models. Contact the Cierres del Hogar team of experts if you have any specific technical and/or commercial questions..
