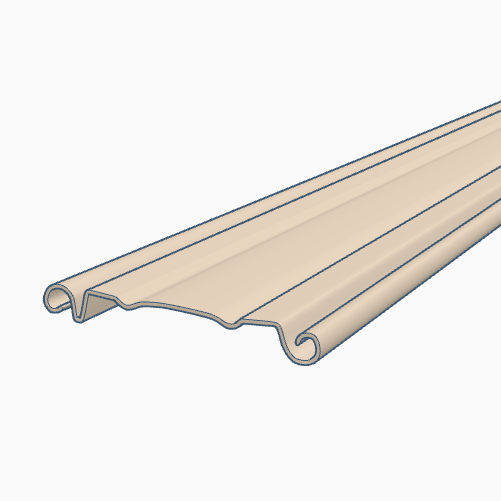

AR-10 slat

Wide coverage slat, ideal for manufacturing large or medium shutters.

With a slat height of 105 mm and thicknesses of 0.6 and 0.7 mm, it is available in blind and micro-perforated models.

Thickness (mm)Width (mm)ModelSlats for a meter widthWeight (Kg/m)Finishings
0,6105Blind100,768Galvanized, White prelacquered, woodlike prelacquered and stainless steel
10Blind: 0,918
Microperf.: 0,768
Galvanized Steel
0,7105Microperf.10Microperf.: 0,768Stainless Steel
10Blind: 1,287
Microperf.: 1,180
Galvanized Steel

Do you need more technical specifications?

Download the technical data sheet to find out the composition, properties and applications of the different models. Contact the Cierres del Hogar team of experts if you have any specific technical and/or commercial questions..


Special Courts
San Salvador de Bahía

The thickness of the facade has been covered with an Aluacero panel. The multi-perforated model allows light to enter the rooms. These micro-perforations enable correct ventilation of the facade and the panels, preventing overheating.

The lacquering on the panels makes the building stand out and gives it a much more modern appearance.

It is quick to install and does not require highly skilled labour.

Juzgados Especiales - Panel Aluacero
